WPA-30GS-1

Order Code801429

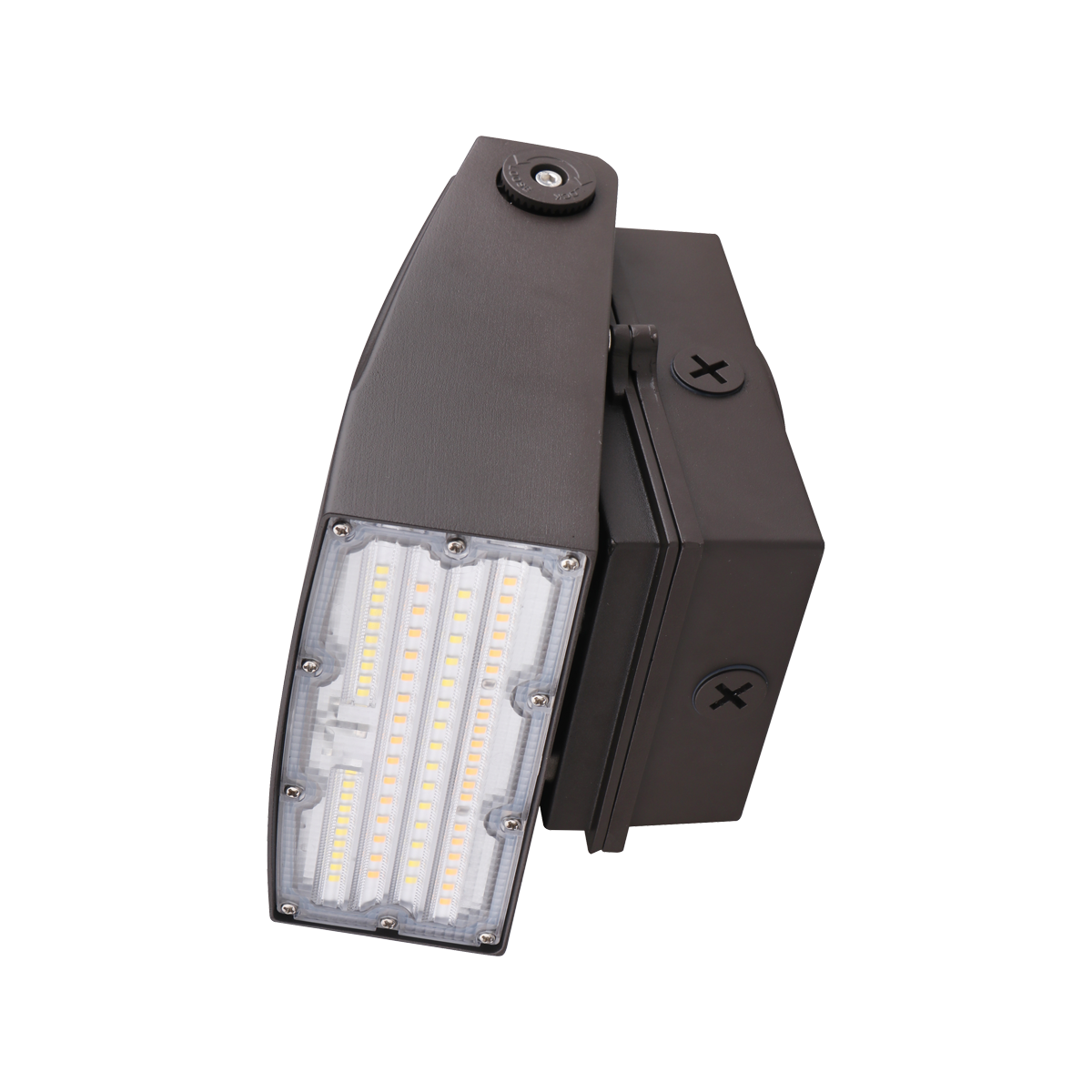

Wall Pack Adjustable, 30/20/12W, 3000/4000/5000K, 100-277V, Photocell

Resources

No accessories available.
No controls available.

WPA-30GS-1

Order Code801429

Wall Pack Adjustable, 30/20/12W, 3000/4000/5000K, 100-277V, Photocell

REPLACED BY WPA1-PS30-FCCT-H

Product Specifications
Input Voltage120-277VAC
Lumens (lm)4,000 / 2,600 / 1,500 lm
Wattage30W / 20W / 12W
Efficacy (lm/W)148
CCT3000K / 4000K / 5000K
CRI80+
Replacement For/Equivalent100W-150W HID
DLC VersionDLC 5.1 Premium
TITLE 20Exempt
Energy StarNo
IP RatingIP65
UL Location RatingWet
Other RatingsIK8
RoHS CompliantNo
FCC CompliantNo
Dimensions (L x W x H)L: 7 5/16" (186mm), W: 6 1/2" (165mm), H: 4 1/2" (115mm)
ColorDark Bronze
Lens MaterialPolycarbonate (PC)
Operating Temp Range (°F/°C)-13F to 122F (-25C to 50C)
Surge Protection (kV)2.5kV
Warranty5 Years
BrandPremise
