HBV2-2404-1

Order Code:801134

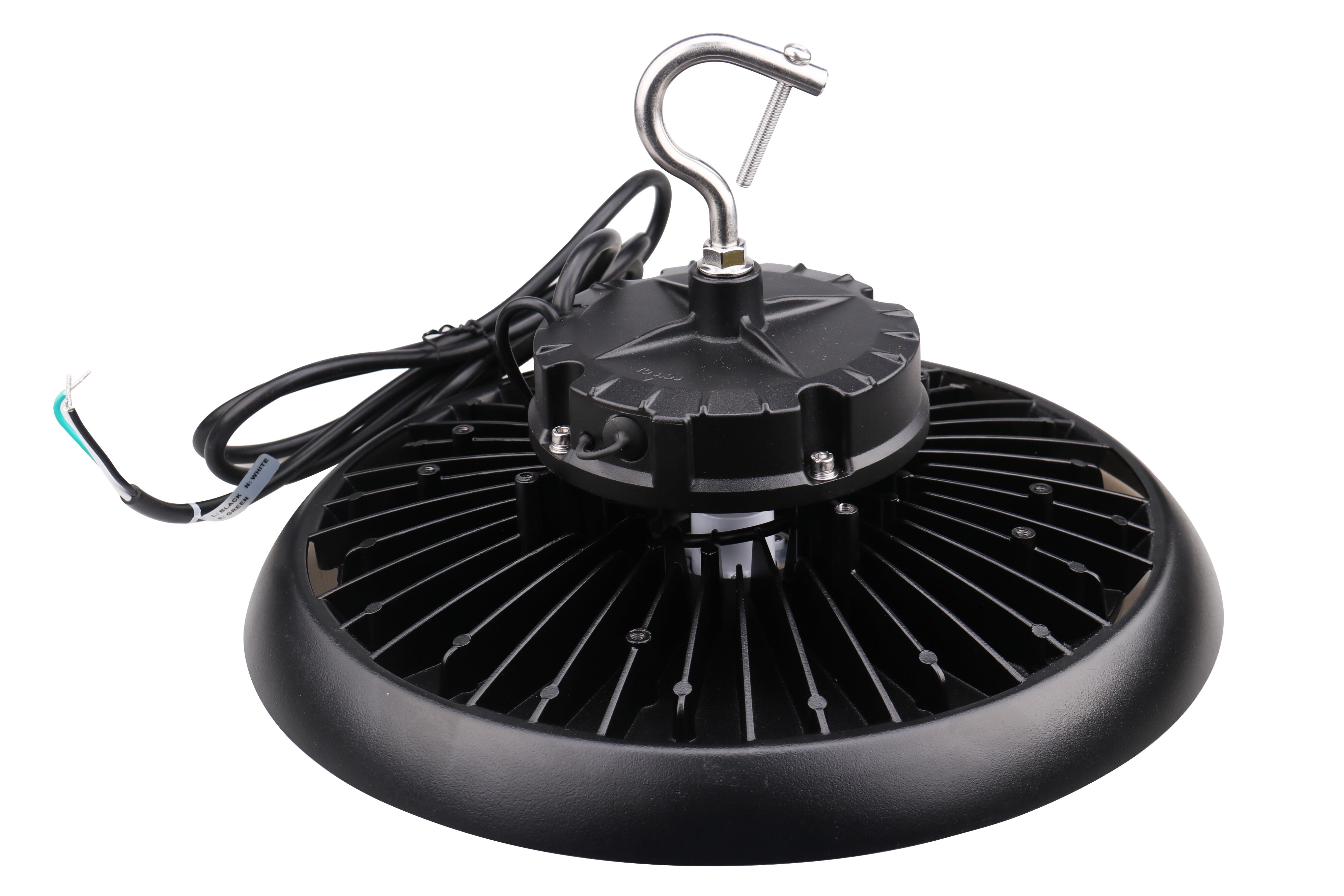

Monopoint Value High Bay, 240W, 4000K, 120-277V, Dimmable

AVAILABILITY: USA, CANADA

UPC CODE:

UNSPSC:

ORDER MULTIPLE: 1

CASE QTY: 1

PALLET QTY:

The HBV2-Series is a monopoint high bay offering that combines performance and price to give you the best of both worlds. With an efficacy of up to 146 lm/W and four impressive lumen packages, they are the perfect choice for applications where an economical solution is required.

Quantity	Price

REPLACED BY

BAYE3-PS240-FCCT-U

Product Specifications
Input Voltage	120-277VAC
Lumens (lm)	34,600 lm
Wattage	240W
Efficacy (lm/W)	143
CCT	4000K
CRI	80+
Replacement For/Equivalent	400W+ HID/HPS
DLC Version	DLC 5.1 Premium
TITLE 20	Exempt
Energy Star	No
IP Rating	IP65
UL Location Rating	Wet
RoHS Compliant	No
FCC Compliant	No
Dimensions (L x W x H)	Ø: 14 3/16" (360 mm), H: 7 7/16" (189 mm)
Color	Matte Black
Lens Material New	Polycarbonate (PC)
Operating Temp Range (°F/°C)	-40F to 122F (-40C to 50C)
Surge Protection (kV)	6kV
Auxiliary Output	12V
Warranty	5 Years
Brand	Premise

Spec SheetDownload
Install SheetDownload
Sell SheetDownload
IES FileDownload
Spec Sheet (FR)Download
Sell Sheet (FR)Download
Install Sheet (FR)Download

ORDER CODE	PART#	DESCRIPTION
801275	HBV2-REF-AL-M	Aluminum reflector for HBV2 200W, 240W
801278	HBV2-REF-PC-M	Prismatic reflector for HBV2 200W, 240W
801385	HBV2-EYEBOLT-M10	Eyebolt for HBV2 100-240W, -1 models & 100-150W, -3 models
801281	MSF-DMR-12	Stand-alone Microwave Motion Sensor, 12V, Screw-in, 0-10V, Ambient Threshold, 49ft max mounting height, Parameters set by RC02
801282	MSF-DPR-12	Stand-alone PIR Motion Sensor, 12V, Screw-in, 0-10V, Ambient Threshold, 20ft, Parameters set by RC02
800891	RC02	Commissioning Tool for programming MSF-DMR-12, MSF-DPR-12, HBX2-MS, and HBX2-MSP Screww-in motion sensors

Sorry, we do not currently carry any controls for this product.
