LH1-PS160-FCCT-H

Order Code14980

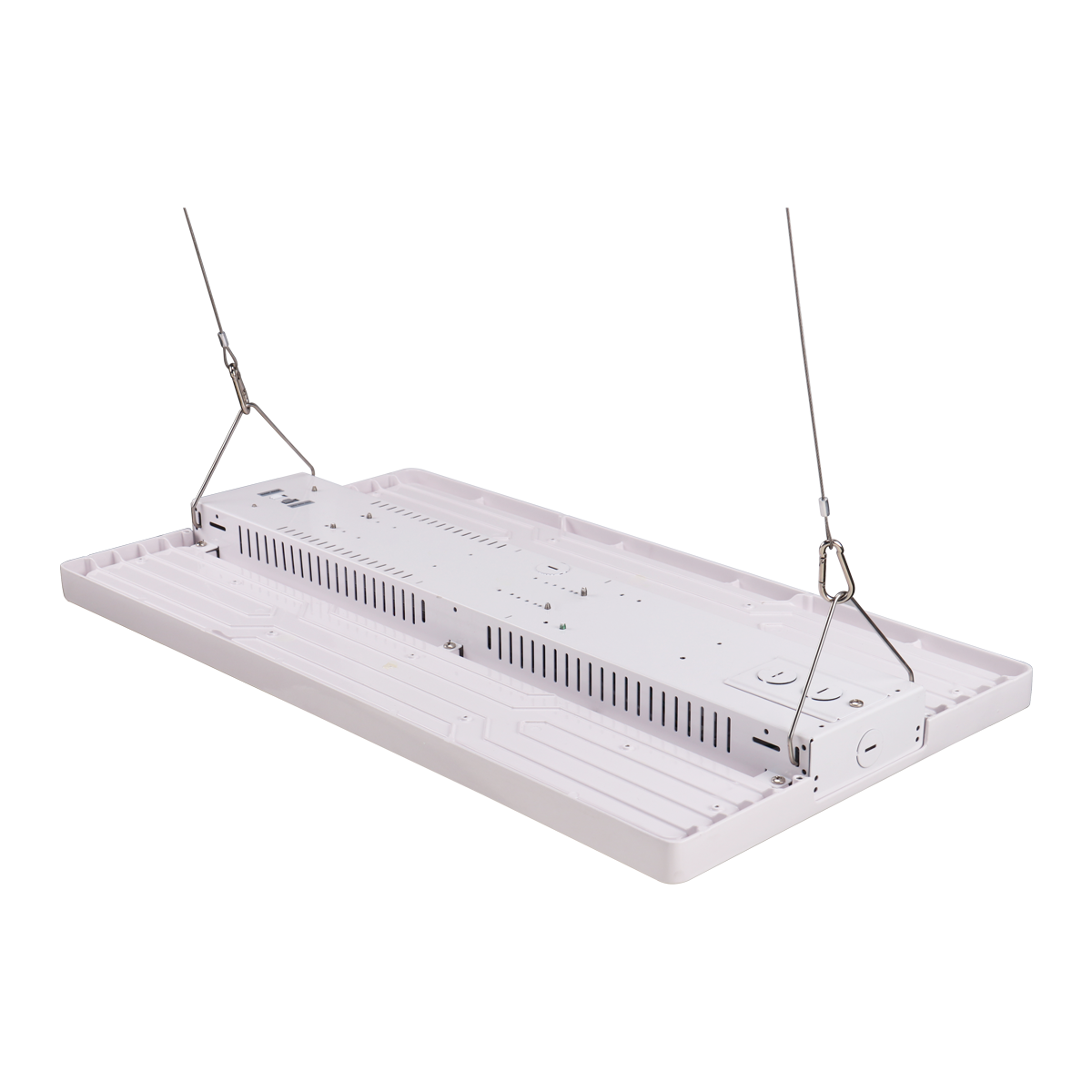

LH1 Linear High Bay, PowerSet 160/130/110/90W, FieldCCeT 4000/5000K, 120-347V, Dimming, 10ft cord

ORDER CODE	PART#	DESCRIPTION
13818	LH1-WG	LH1 Wire Guard for 90-240W
13816	LH1-PMK	LH1 and LHS1 Pendant Mount Kit
13817	LH1-TRSMK	LH1 and LHS1 Threaded Rod & Surface Mount Kit
13815	LH1-VCK	LH1 and LHS1 V-Hook & Chain Kit, 3.3ft
14369	LH1-LENS-65	LH1 Lens, 65 Degree, 90-240W
11675	EEBE18WHA170S	EiKO Emergency Battery External 18W 120-347V 170VDC Single Flex-Conduit CEC Compliant
14383	LH1-ZBRK	LH1 and LHS1 Battery Backup Mounting Kit includes 2 white Z brackets and 9 mounting screws

ORDER CODE	PART#	DESCRIPTION
13344	SEN5A-ACT	Commissioning Tool for SEN5A, BAY-E-SEN/PIR, BAY-E-SEN/M, and MS2-DPX-3(Backward compatible with SEN5A/CT and RC-100)
13861	SEN5A-SPPR-WH	Stand-alone PIR Motion Sensor, 12-24V, Screw-in, 0-10V, Daylight Harvesting, 8-40ft, White, IP65, Parameters set by SEN5A-ACT
13859	SEN5A-SPMR-WH	Stand-alone Microwave Motion Sensor, 12-24V, Screw-in, 0-10V, Daylight Harvesting, 8-40ft, White, IP65, Parameters set by SEN5A-ACT
13865	SENA-WPPA-WH	BLE PIR Motion sensor, 12-24V, Screw-in, 0-10V, Daylight Harvesting, 8-40ft, White, IP65, Parameters set by Silvair App
13467	SENA-APZ-WH	Z10 adapter 1/2'' Screw-in spring load pins to Z10 Receptacle IP65 White

Order Code14980

LH1 Linear High Bay, PowerSet 160/130/110/90W, FieldCCeT 4000/5000K, 120-347V, Dimming, 10ft cord

Availability

USA, CANADA

Ordering Information

UPC CODE031293149800

Order Multiple1

Case Qty

Pallet Qty

Product Specifications
Input Voltage	120-347VAC
Lumens (lm)	13,500 / 16,500 / 19,500 / 24,000 lm
Wattage	160W / 130W / 110W / 90W
Efficacy (lm/W)	150
CCT	4000K / 5000K
CRI	80+
Dimming	0-10V
Replacement For/Equivalent	6 lamp 32W T8 or 4 lamp T5 HO or up to 400W HID
DLC Version	DLC 5.1 Premium
TITLE 20	Exempt
Energy Star	No
IP Rating	IP20
UL Location Rating	Damp
Other Ratings	IK6
RoHS Compliant	Yes
FCC Compliant	Yes
UL / ETL	Yes - UL
Dimensions (L x W x H)	L: 23" (585 mm), W: 11" (280 mm), H: 2 3/16" (55 mm)
Color	White
Lens Material	Polycarbonate (PC)
Operating Temp Range (°F/°C)	Without Motion Sensor: -40F to 122F (-40C to 50C), With Motion Sensor: -22F to 122F (-30C to 50C)
Surge Protection (kV)	6kV
Auxiliary Output	Yes (12V)
Warranty	5 Years
Brand	EiKO
