BAYE3-150-40-U

Order Code:13145

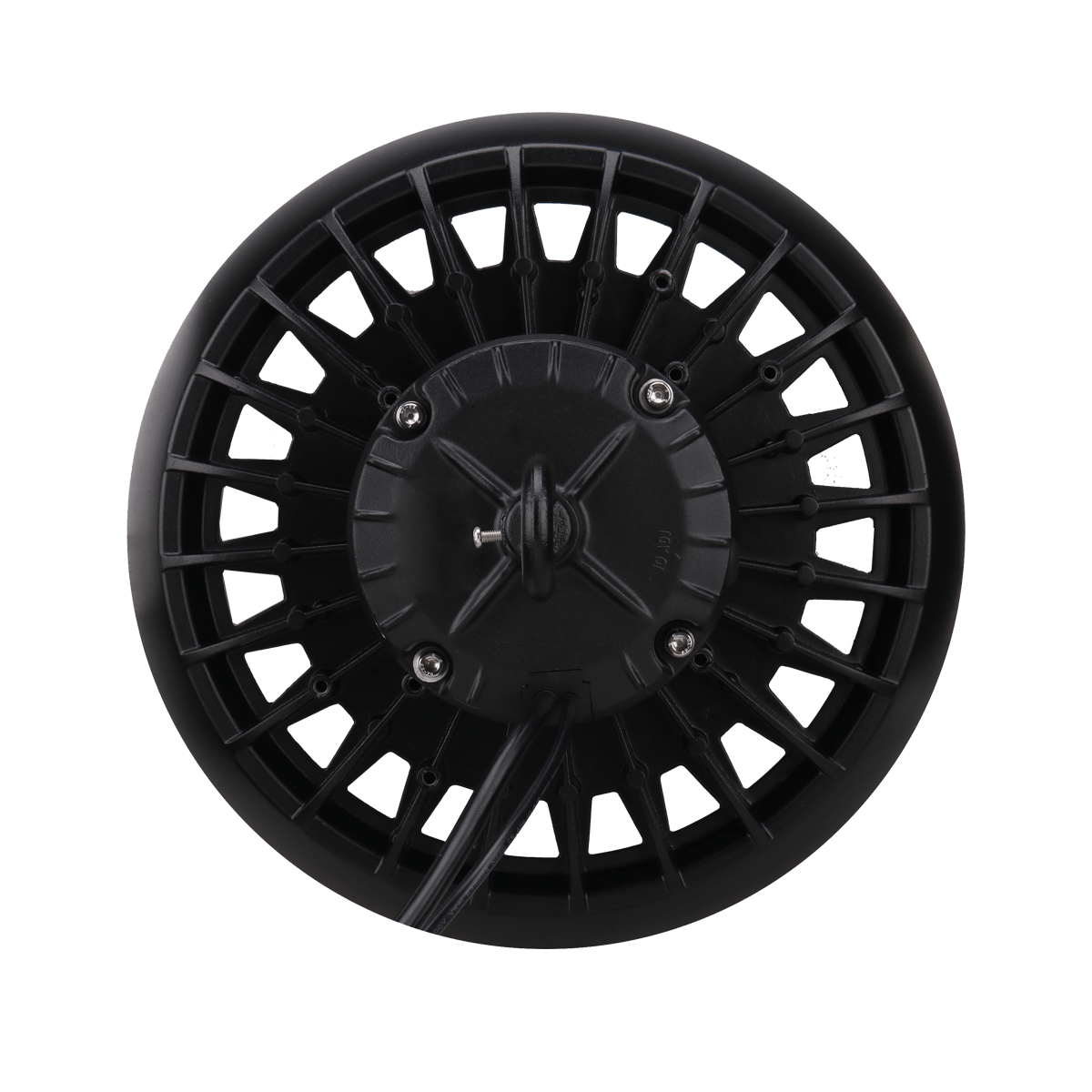

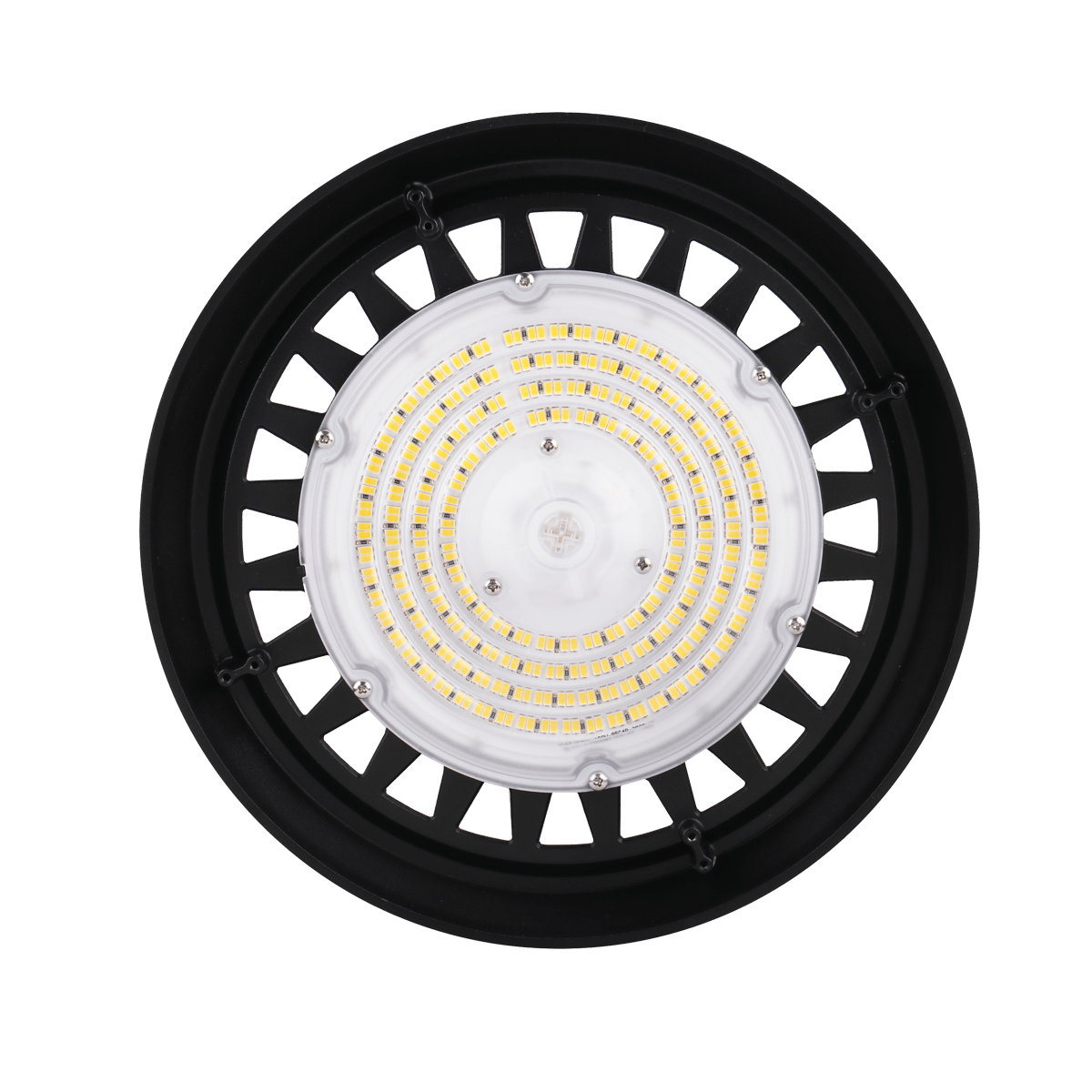

BAYE3 Round High Bay, 150W, 4000K, 120-277V, 0-10V Dimming, Black

AVAILABILITY:  USA

REPLACED BY

BAYE4-PS150-OS-8FCCT-HDIM

Suggested Alternative Items

BAYE3-PS150-FCCT-H

BAYE3-PS150-FCCT-U

BAYE3-150-40-H

Product Specifications
Input Voltage120-277VAC
Lumens (lm)22,500 lm
Wattage150W
Efficacy (lm/W)150
CCT4000K
CRI80+
Dimming0-10V
Replacement For/EquivalentUp to 400W HID
DLC VersionDLC 5.1 Premium
TITLE 20Exempt
Energy StarNo
IP RatingIP65
UL Location RatingWet
RoHS CompliantNo
FCC CompliantNo
Dimensions (L x W x H)Ø: 11 3/16" (284 mm), H: 5 11/16" (144 mm)
ColorMatte Black
Lens MaterialPolycarbonate (PC)
Operating Temp Range (°F/°C)-40F to 122F (-40C to 50C)
Warranty5 Years
BrandEiKO
